Wukong tank with four servos

GeekEdu design

The Wukong mecanum racer on tracks: its four Geekservo 360° servos, two on each side, drive tracks from the Building:bit kit, so it turns on the spot. Turn it in 3D, build it step by step or open it in BrickLink Studio.

Loading 3D model…

Drag to turn the model, scroll to zoom.

Downloads

Building instructions (PDF) Model for BrickLink Studio (zip) BrickLink wanted list (XML) Custom parts for Studio

The Studio zip holds the model, the custom parts it needs and how to install them.

Building steps

The parts added in a step have a red outline.

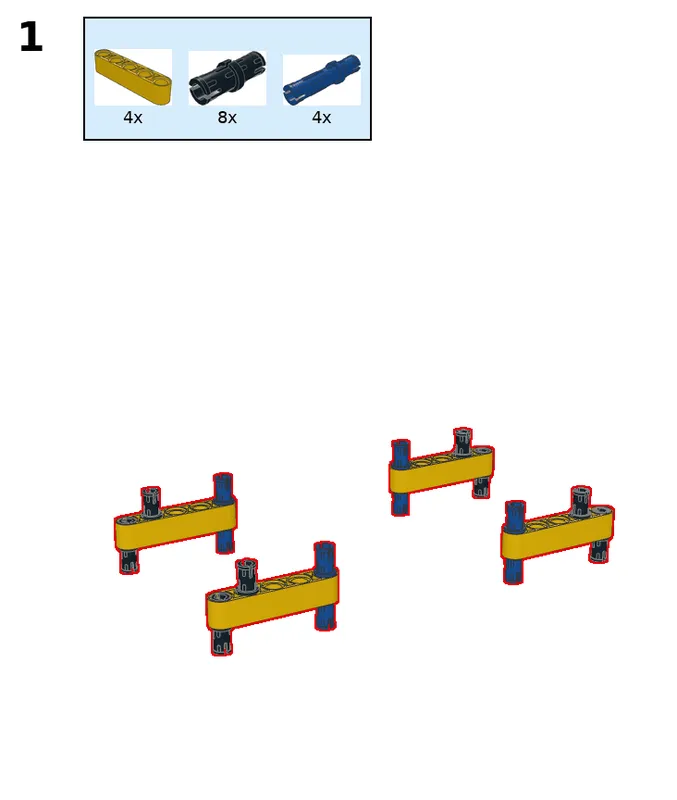

Wukong tank with four servos - step 1
1.
Wukong tank with four servos - step 2
2.
Wukong tank with four servos - step 3
3.
Wukong tank with four servos - step 4
4.

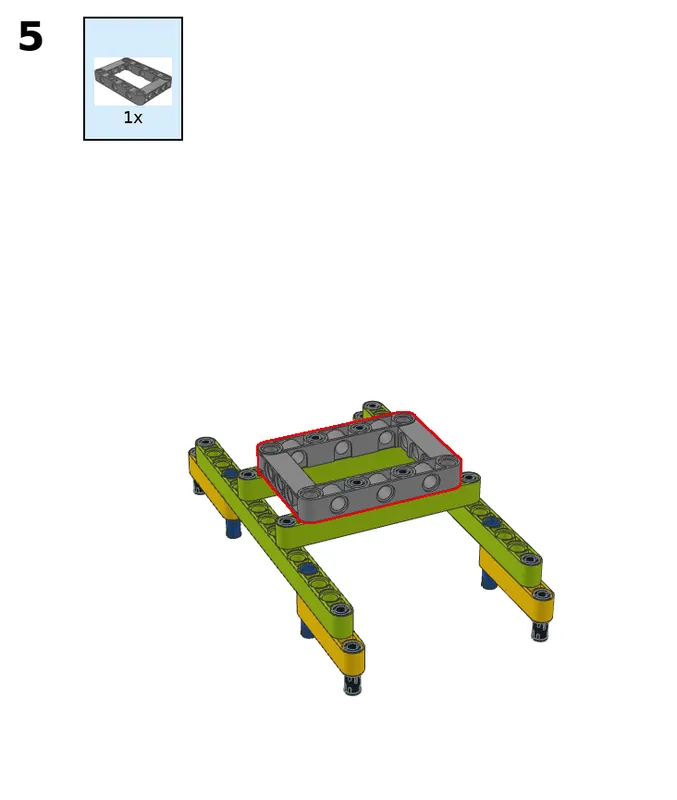

Wukong tank with four servos - step 5
5.
Wukong tank with four servos - step 6
6.

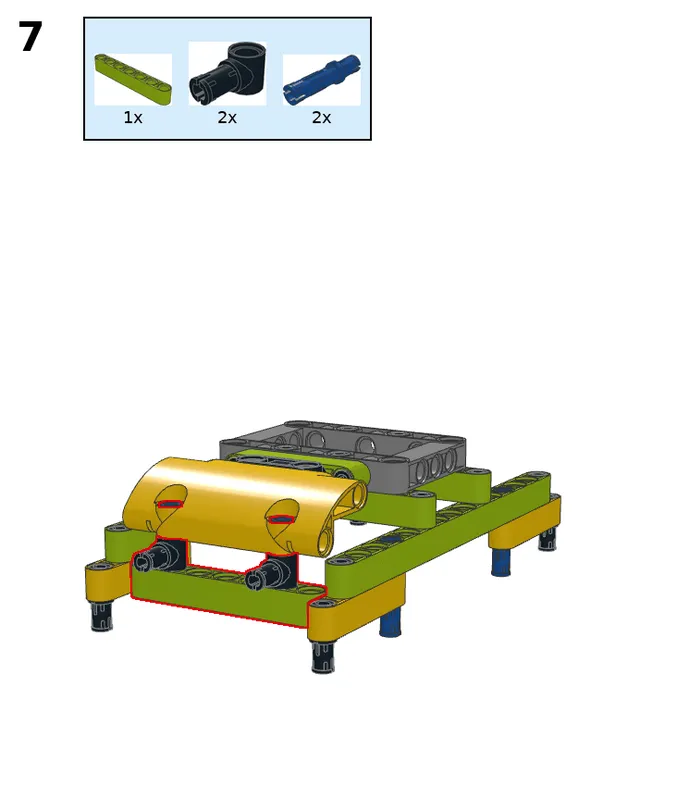

Wukong tank with four servos - step 7
7.

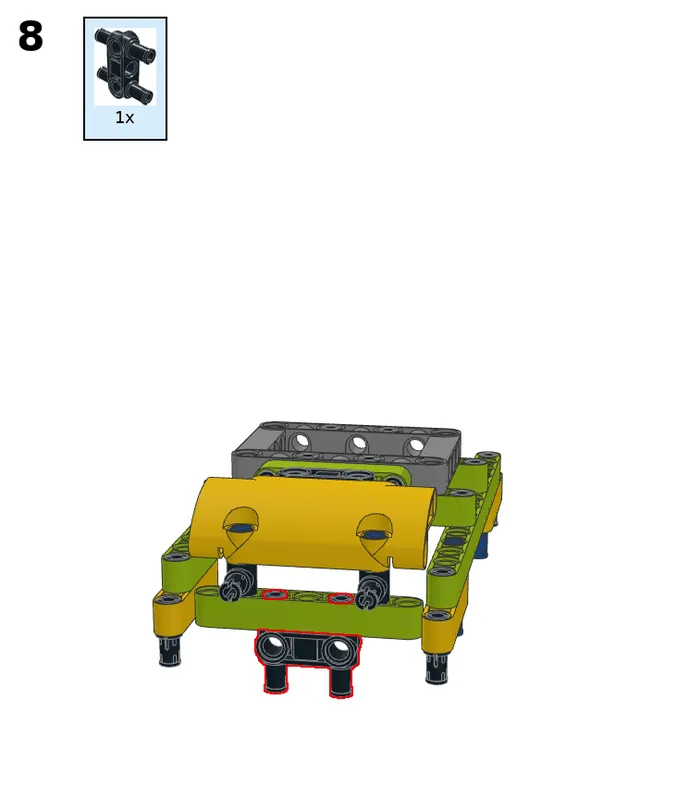

Wukong tank with four servos - step 8
8.

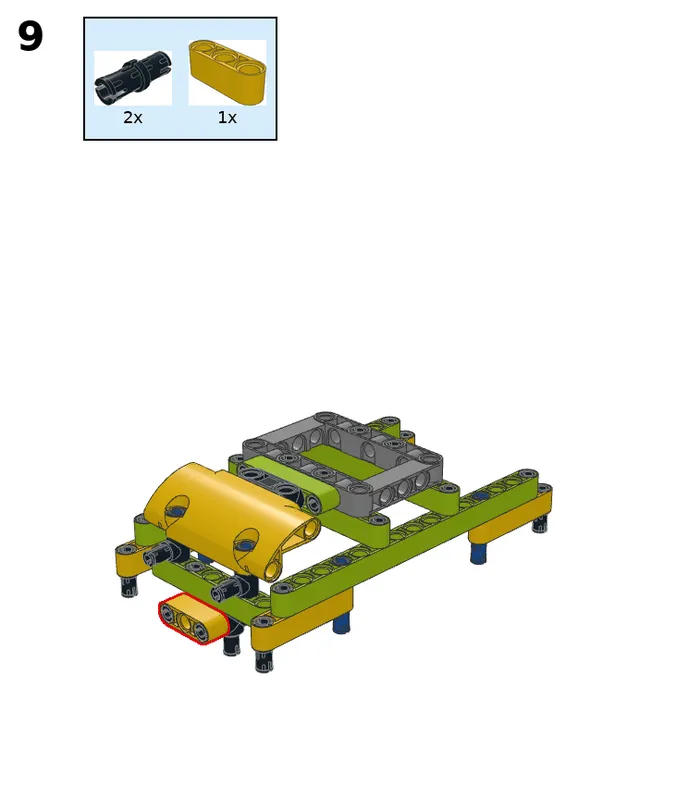

Wukong tank with four servos - step 9
9.

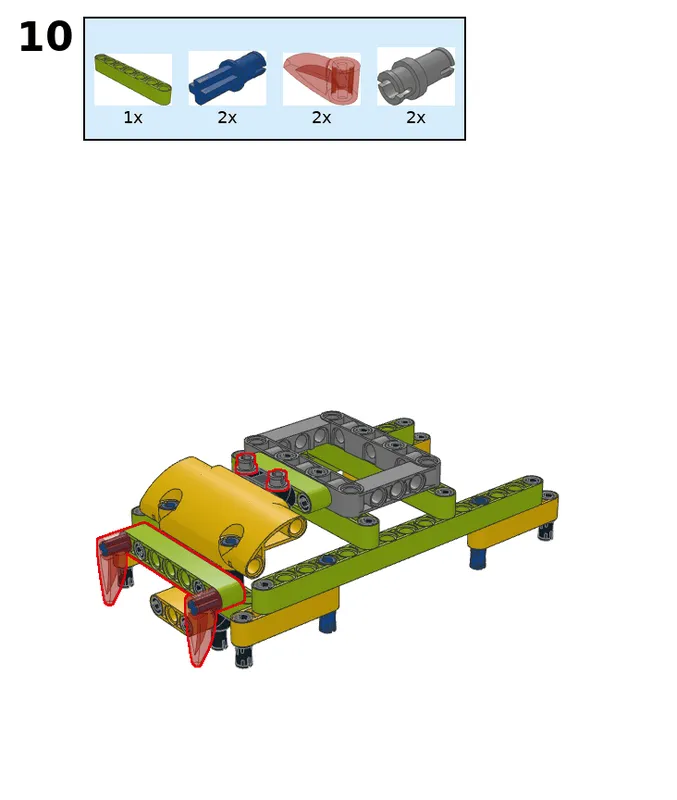

Wukong tank with four servos - step 10
10.

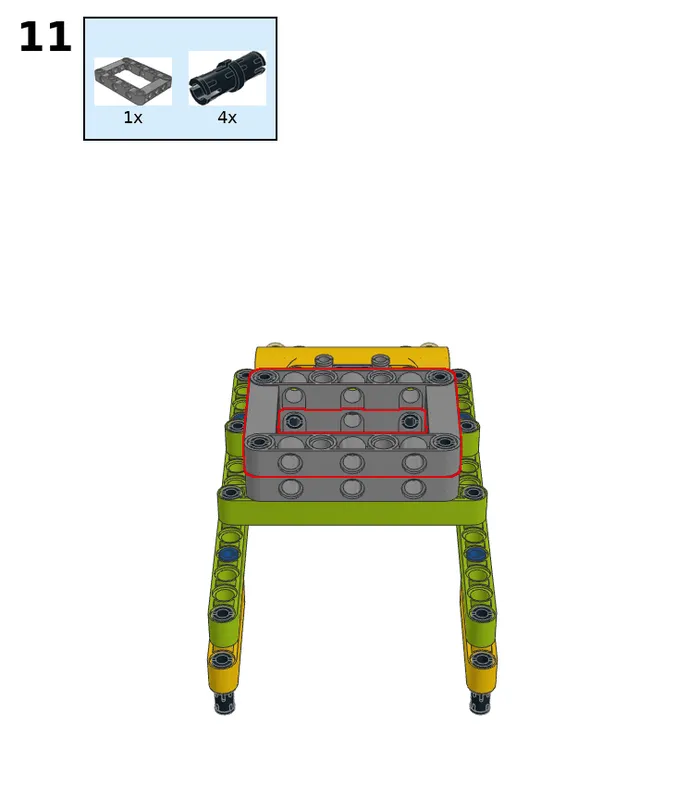

Wukong tank with four servos - step 11
11.
Wukong tank with four servos - step 12
12.

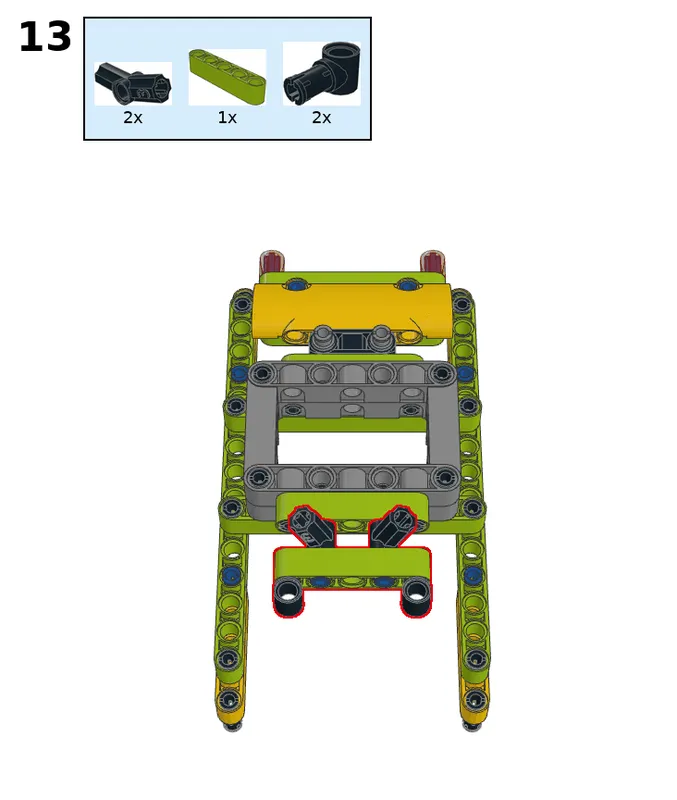

Wukong tank with four servos - step 13
13.
Wukong tank with four servos - step 14
14.

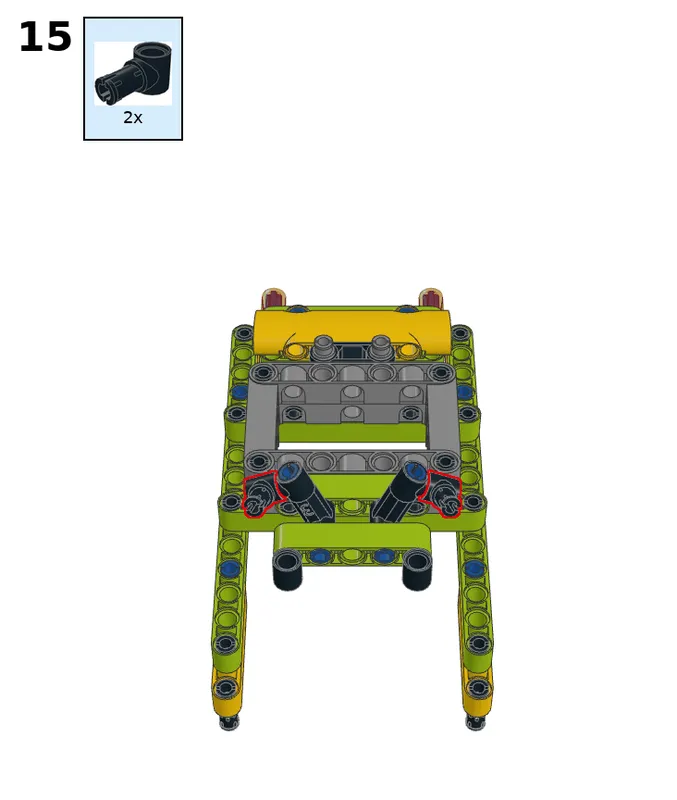

Wukong tank with four servos - step 15
15.

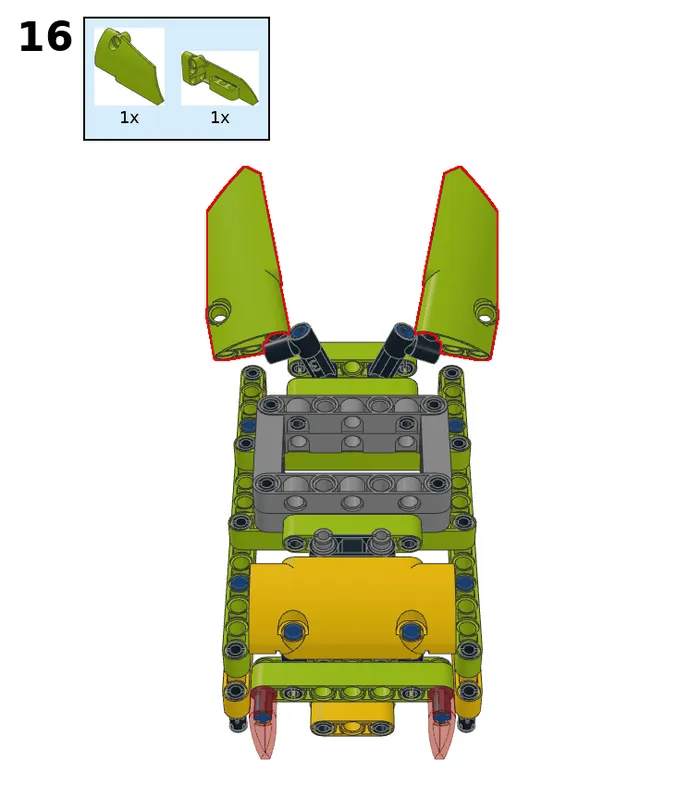

Wukong tank with four servos - step 16
16.

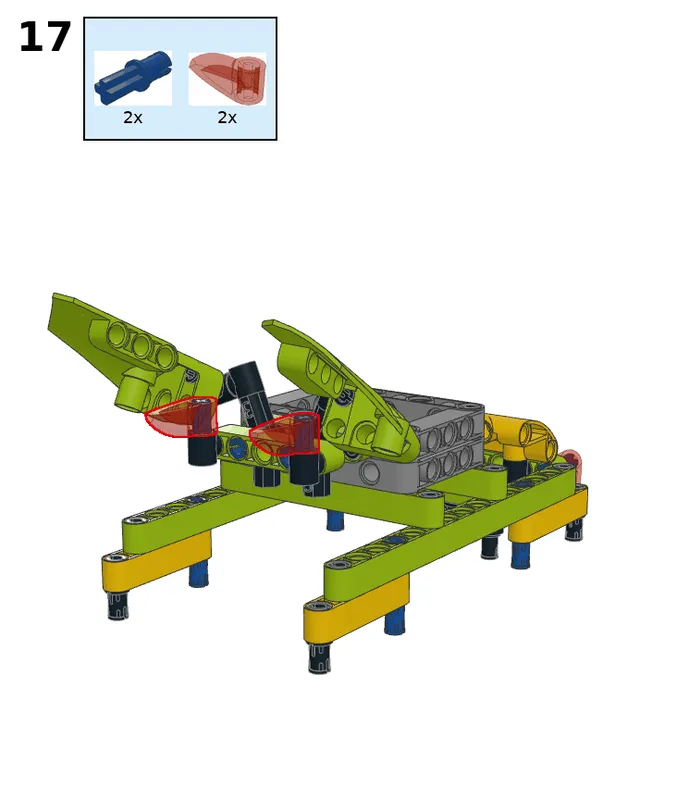

Wukong tank with four servos - step 17
17.

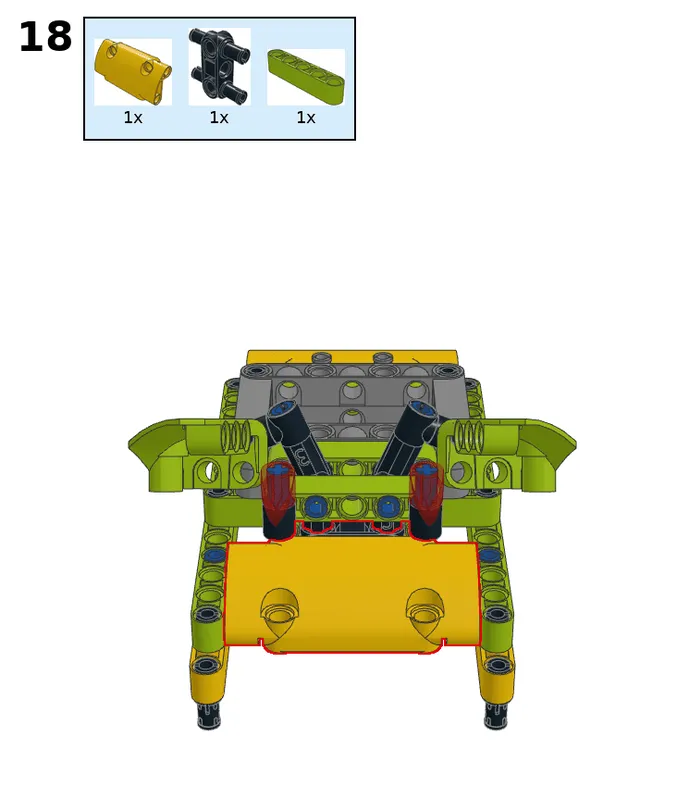

Wukong tank with four servos - step 18
18.

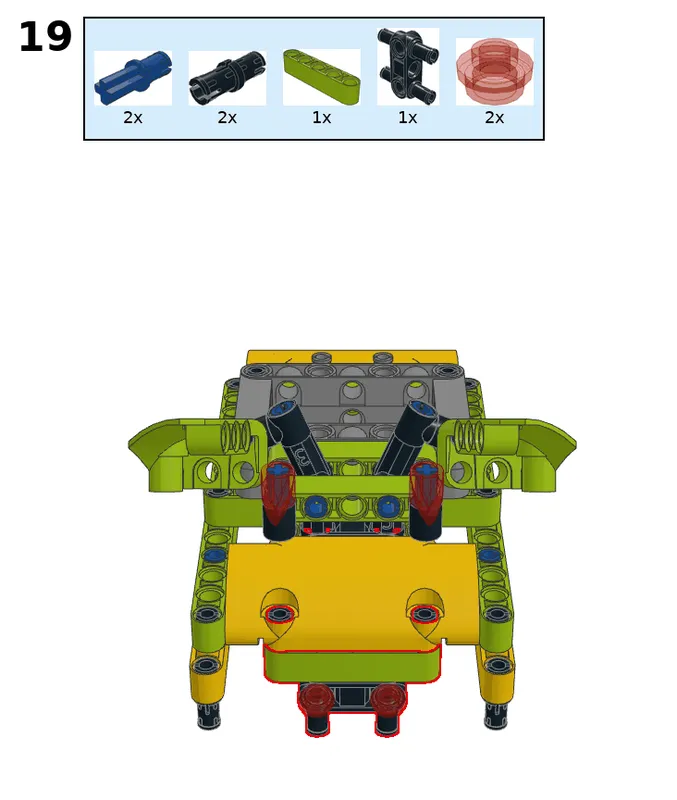

Wukong tank with four servos - step 19
19.

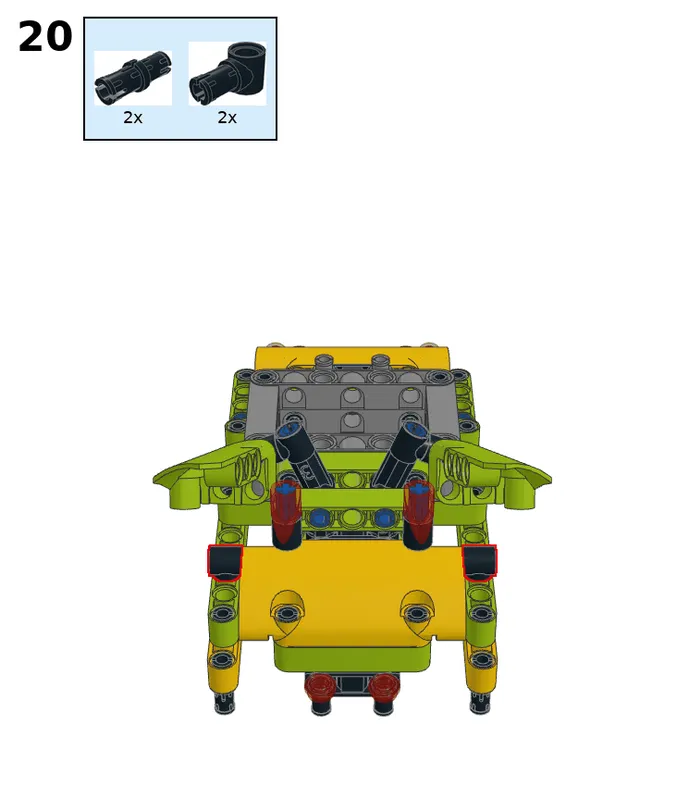

Wukong tank with four servos - step 20
20.

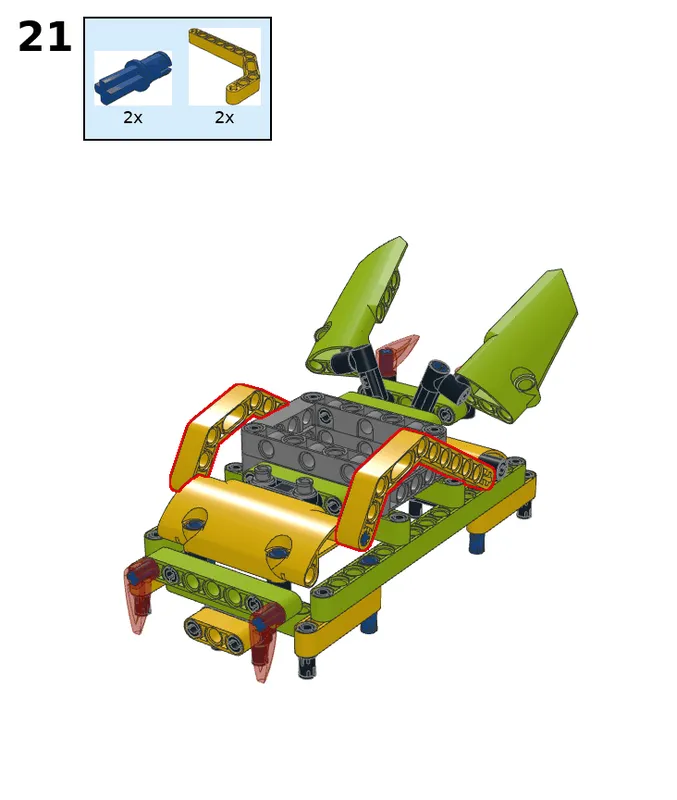

Wukong tank with four servos - step 21
21.

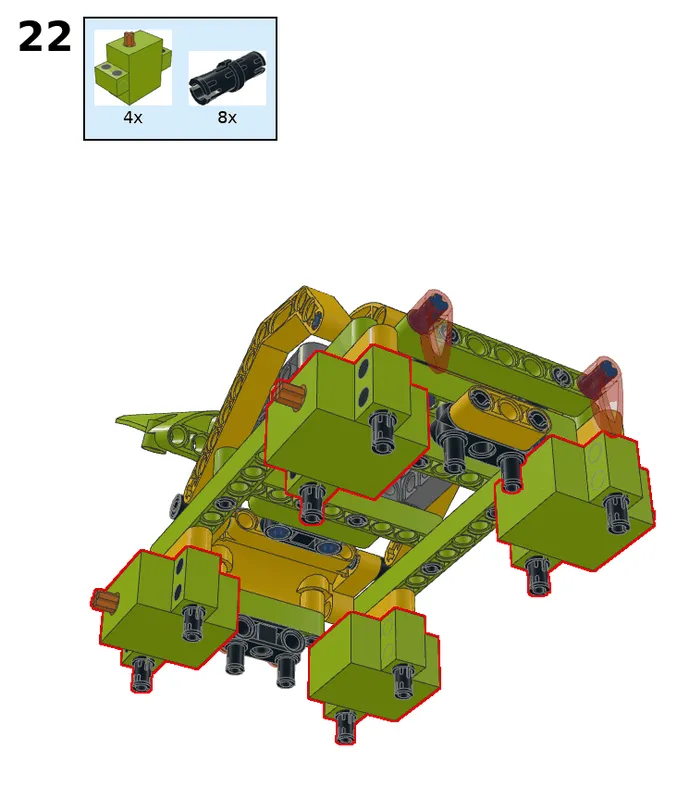

Wukong tank with four servos - step 22
22.

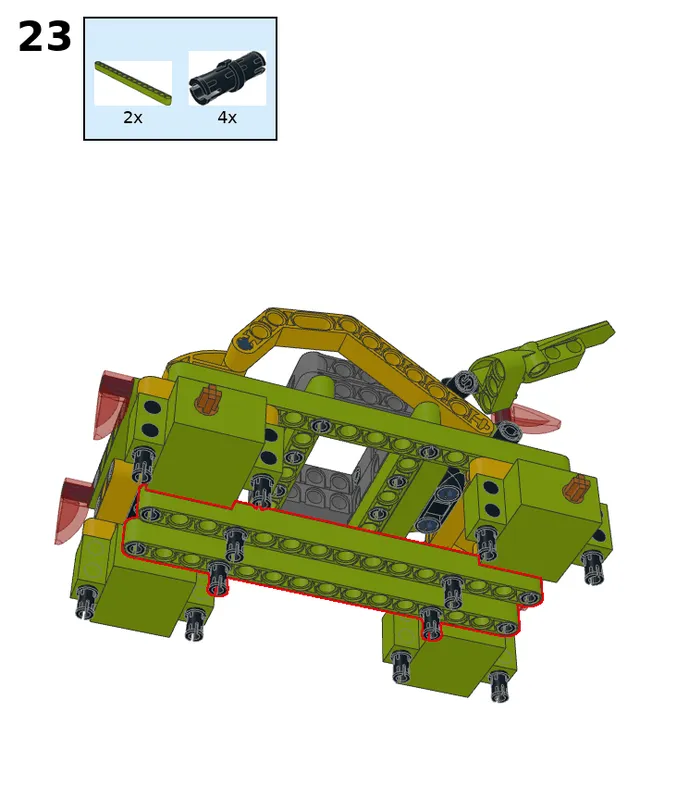

Wukong tank with four servos - step 23
23.
Wukong tank with four servos - step 24
24.
Wukong tank with four servos - step 25
25.

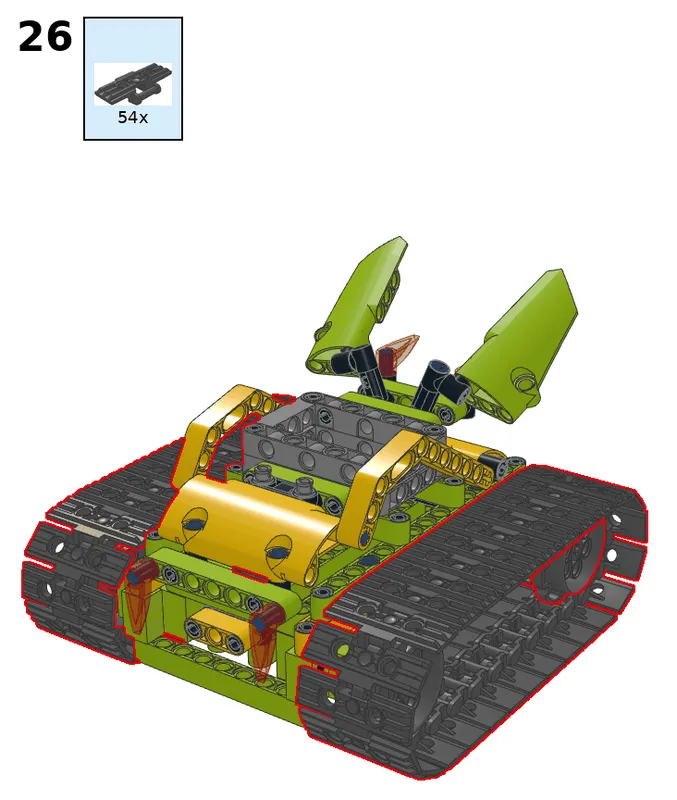

Wukong tank with four servos - step 26
26.
Wukong tank with four servos - step 27
27.

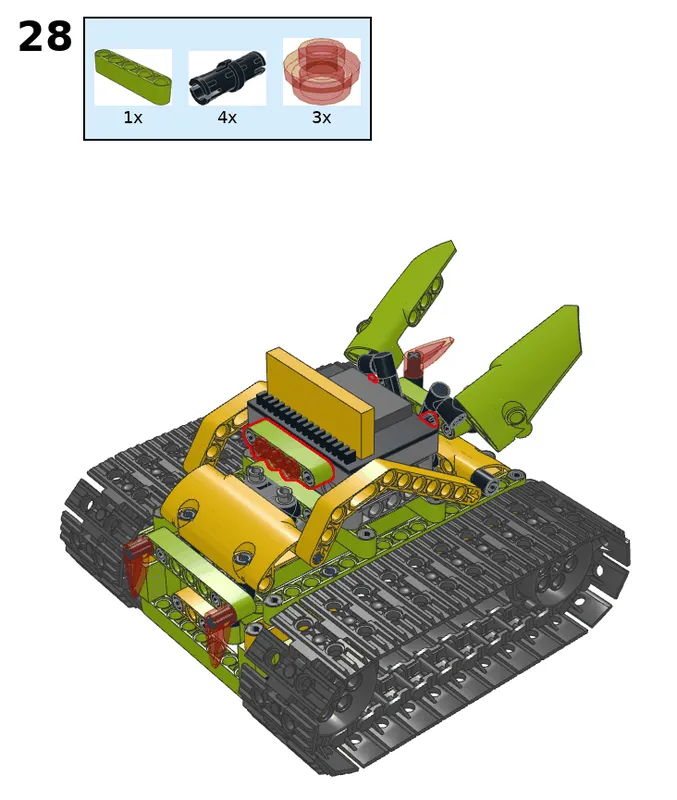

Wukong tank with four servos - step 28
28.

Parts

PartColourWhere to get itQty
Technic Pin with Friction with Perpendicular Pin Hole Type 1 Black BrickLink 15100 10
Technic Panel Smooth 7 x 2 x 3 Yellow BrickLink 24119 2
Technic Pin with Friction and Slots Black BrickLink 2780 50
Technic Pin 3/4 Light Bluish Gray BrickLink 32002 2
Technic Beam 3 x 3.8 x 7 Liftarm Bent 45 Double Yellow BrickLink 32009 2
Technic Angle Connector #3 (157.5 degree) Black BrickLink 32016 2
Technic Beam 15 Lime BrickLink 32278 4
Technic Beam 5 Yellow BrickLink 32316 4
Technic Beam 5 Lime BrickLink 32316 6
Technic Beam 3 Yellow BrickLink 32523 1
Technic Beam 7 Lime BrickLink 32524 2
Technic Beam 9 Lime BrickLink 40490 6
Technic Tooth 1 x 3 with Axlehole Trans-Red BrickLink 41669 4
Technic Axle Pin with Friction Blue BrickLink 43093 10
Technic Cross Block 1 x 3 (Pin/Pin/Pin) with 4 Pins Black BrickLink 48989 4
Technic Chain Tread 5 Wide Dark Bluish Gray BrickLink 57518 54
Technic Sprocket Wheel 40.4 Dark Bluish Gray BrickLink 57519 4
Technic Beam 7 x 5 with Open Center 5 x 3 Light Bluish Gray BrickLink 64179 2
Technic Panel Fairing Smooth #4 (Medium) Lime BrickLink 64391 1
Technic Panel Fairing Smooth #3 (Medium) Lime BrickLink 64683 1
Technic Pin Long with Friction and Slot Blue BrickLink 6558 8
Plate 1 x 1 Round with Open Stud Trans-Red BrickLink 85861 5
ElecFreaks Geekservo 360° servo (green) electronics 4
ElecFreaks Wukong board on its 7 x 5 LEGO base electronics ElecFreaks 1
