Wukong tank with two DC motors
GeekEdu design
A tank on the Wonder Building Kit's chassis: its two Geekservo 2 kg motors drive tracks from the Building:bit kit, free idlers turn at the front, and it turns on the spot. Turn it in 3D, build it step by step or open it in BrickLink Studio.
Loading 3D model…
Drag to turn the model, scroll to zoom.
Downloads
Building instructions (PDF)
Model for BrickLink Studio (zip)
BrickLink wanted list (XML)
Custom parts for Studio
The Studio zip holds the model, the custom parts it needs and how to install them.
Building steps
The parts added in a step have a red outline.
1.
2.

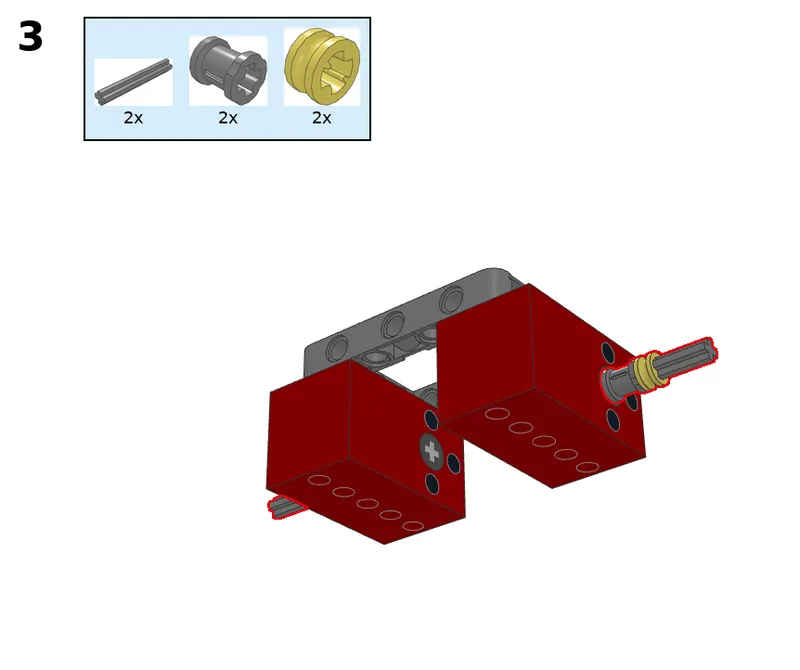

3.
4.
5.

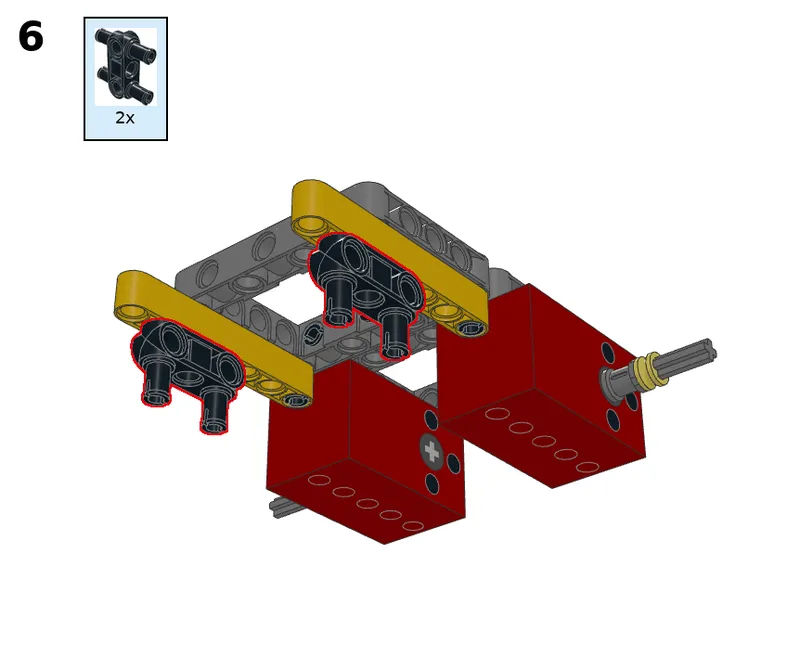

6.
7.
8.

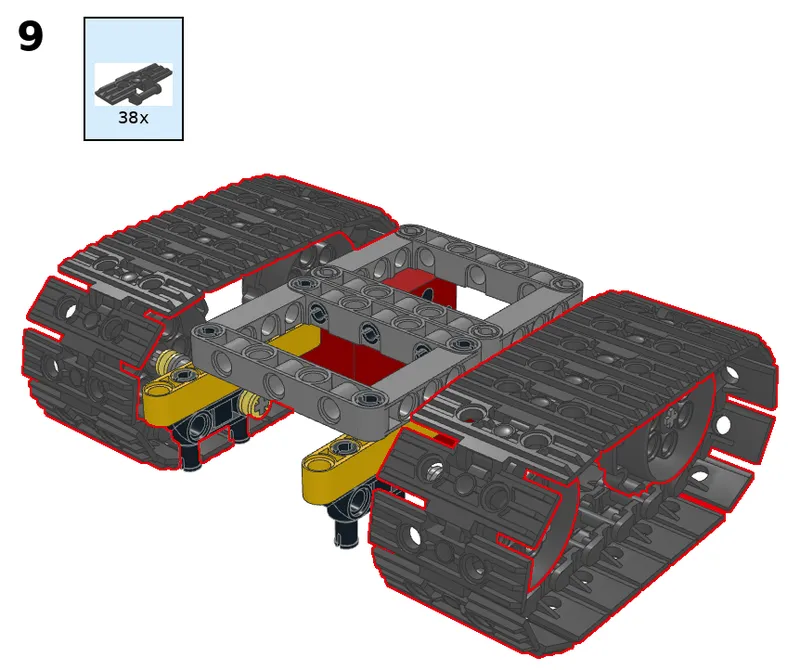

9.
10.
Parts
| Part | Colour | Where to get it | Qty |
|---|---|---|---|
| Technic Pin with Friction and Slots | Black | BrickLink 2780 | 11 |
| Technic Pin 3/4 | Light Bluish Gray | BrickLink 32002 | 4 |
| Technic Beam 7 | Yellow | BrickLink 32524 | 2 |
| Technic Axle 4 | Light Bluish Gray | BrickLink 3705 | 2 |
| Technic Axle 6 | Light Bluish Gray | BrickLink 3706 | 2 |
| Technic Bush with Two Flanges | Light Bluish Gray | BrickLink 3713 | 6 |
| Technic Bush 1/2 Smooth with Axle Hole Reduced | Bright Light Yellow | BrickLink 4265c | 6 |
| Technic Cross Block 1 x 3 (Pin/Pin/Pin) with 4 Pins | Black | BrickLink 48989 | 2 |
| Technic Chain Tread 5 Wide | Dark Bluish Gray | BrickLink 57518 | 38 |
| Technic Sprocket Wheel 40.4 | Dark Bluish Gray | BrickLink 57519 | 4 |
| Technic Beam 7 x 5 with Open Center 5 x 3 | Light Bluish Gray | BrickLink 64179 | 2 |
| ElecFreaks Geekservo 2 kg motor (red) electronics | ElecFreaks | 2 | |
| ElecFreaks Wukong board on its 7 x 5 LEGO base electronics | ElecFreaks | 1 |
